Dimensional Data and Principle
Characteristics Relationship Graphs
Below
are some plots of the main dimensions and principle characteristics of
the planes analyzed showing some potential trend lines.

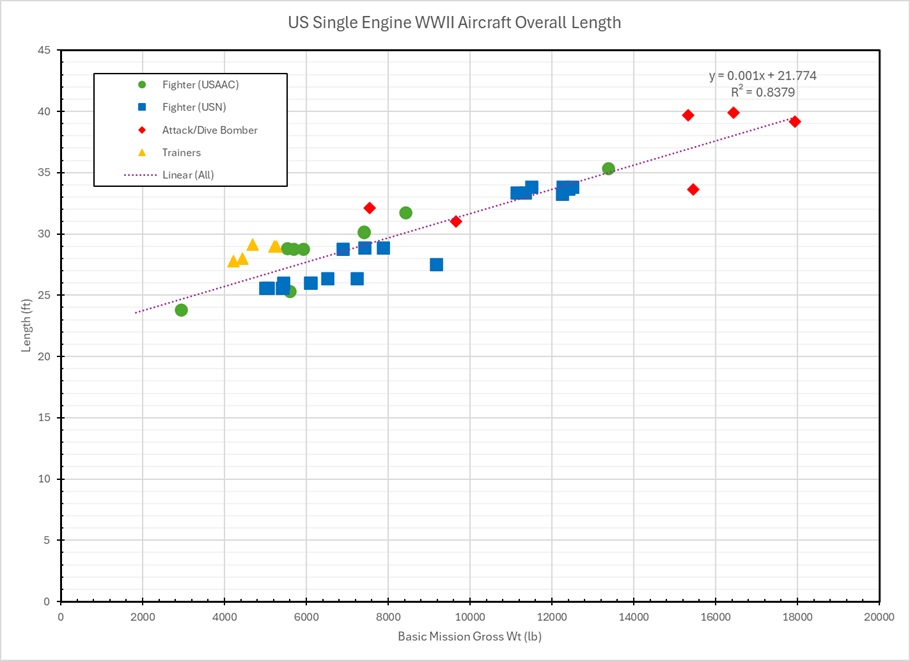

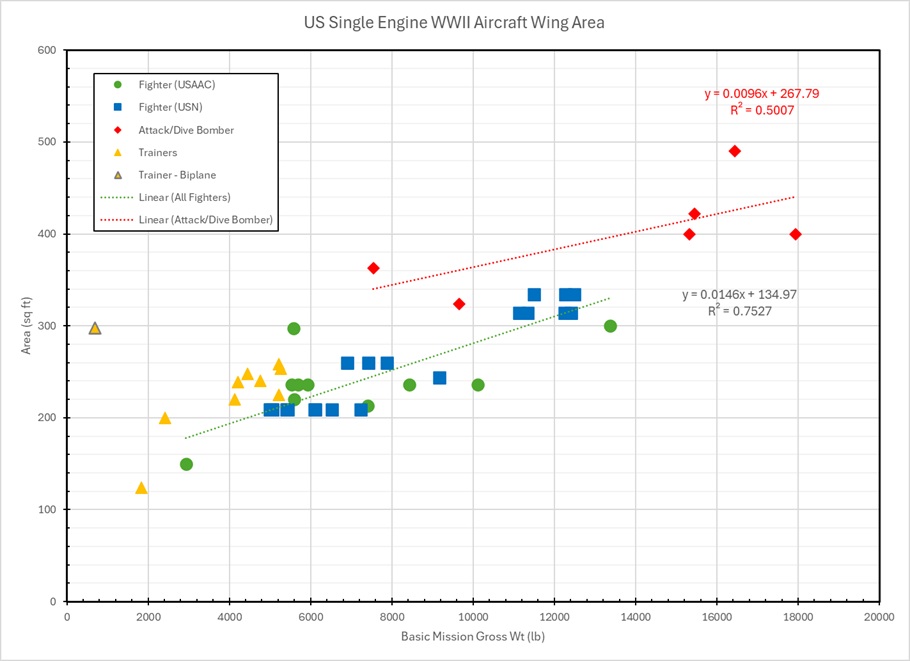

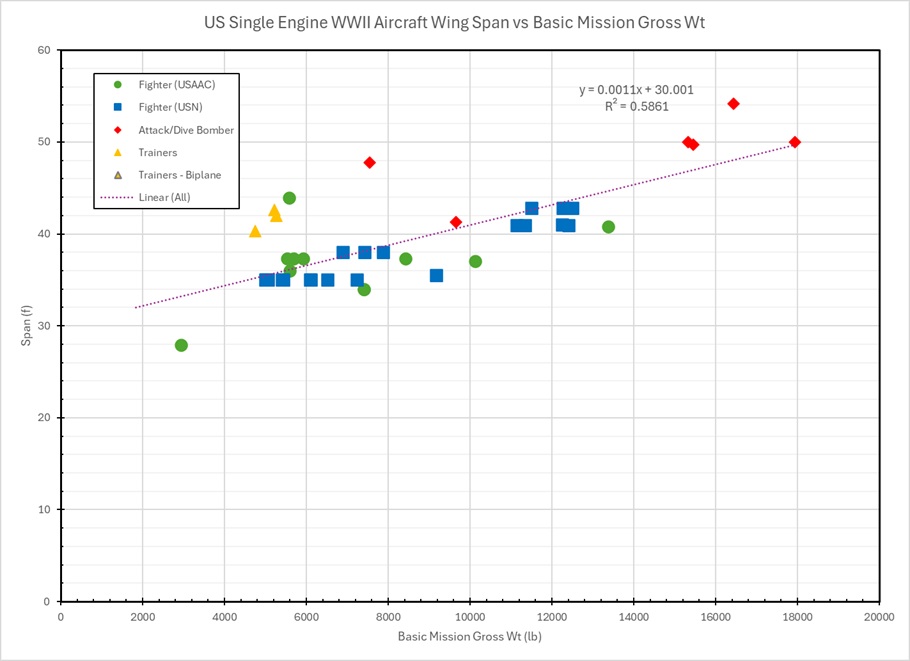

These first three graphs show Overall Length, Wing Area, and Wing Span
versus Basic Mission Gross Weight, respectively.
The next three graphs show Fusealge Length and Body Length versus
Overall Length.

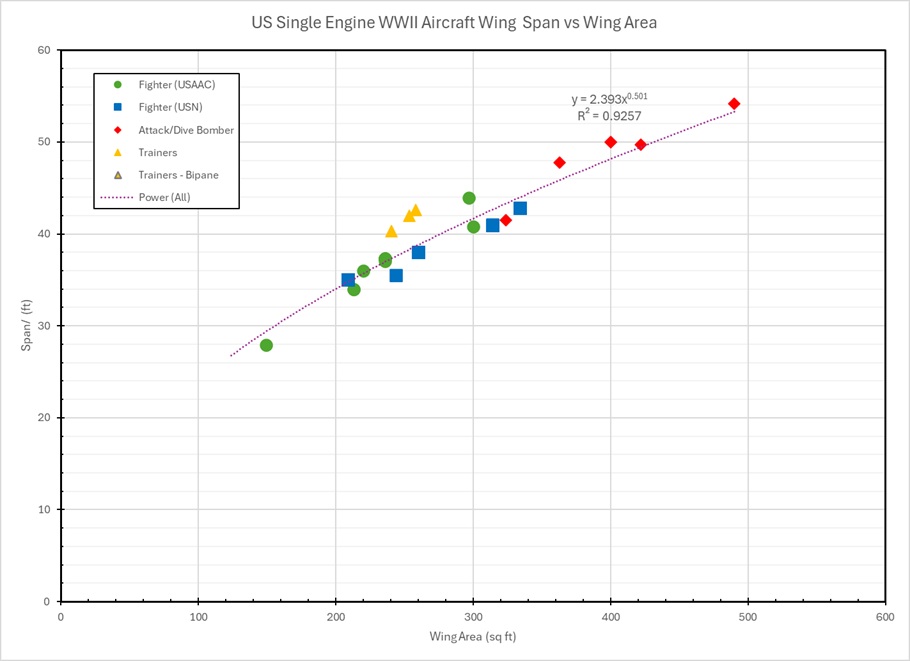

The next graph show Wing Span versus Wing Area.
And

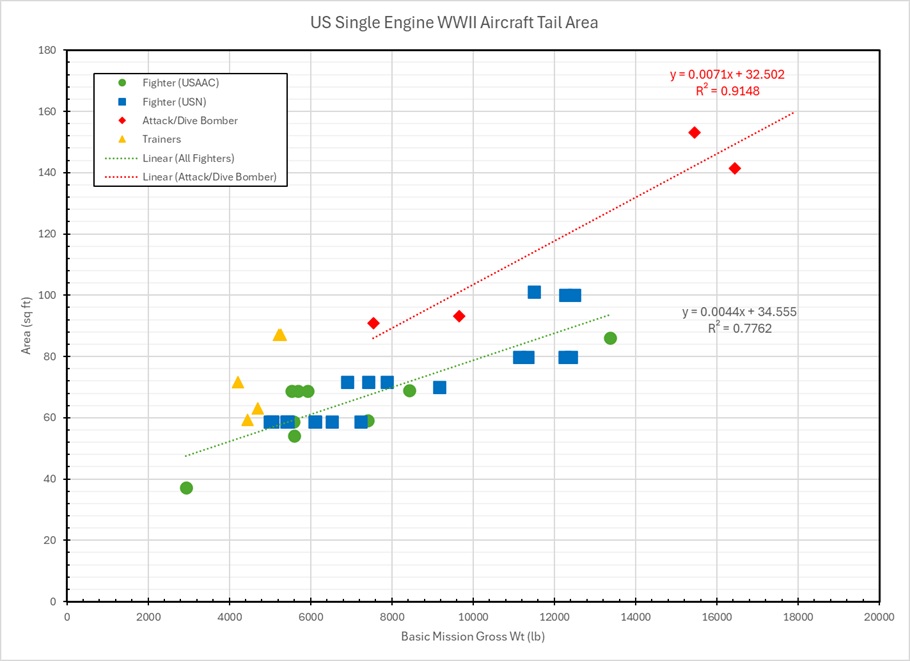

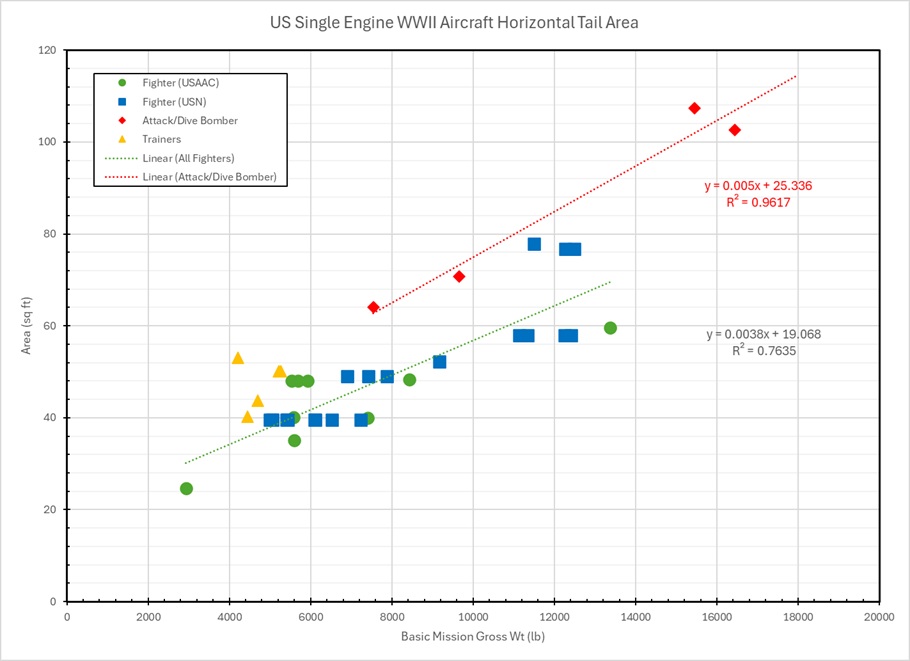

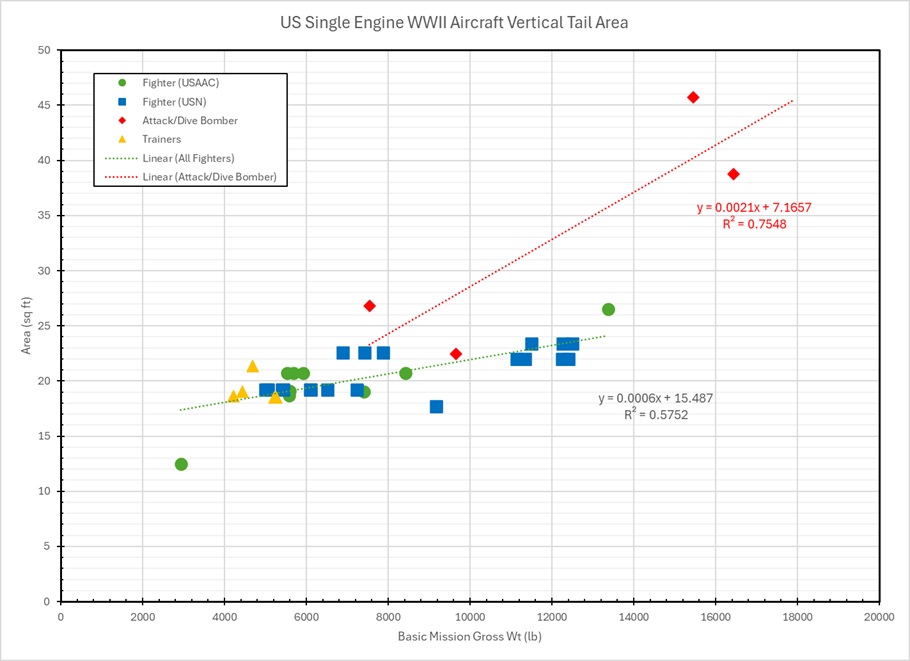

finally, the next three graphs show Total Tail Area, Vertical Tail
Area, and Horizontal Tail Area versus Basic Mission Gross Wt
respectively.
Here
also is a plot of Propeller Diameter for the given aircraft analyzed
here versus the Rated Take-Off Power of the engines installed in each
aircraft.
