Engine Power Rating Relationships

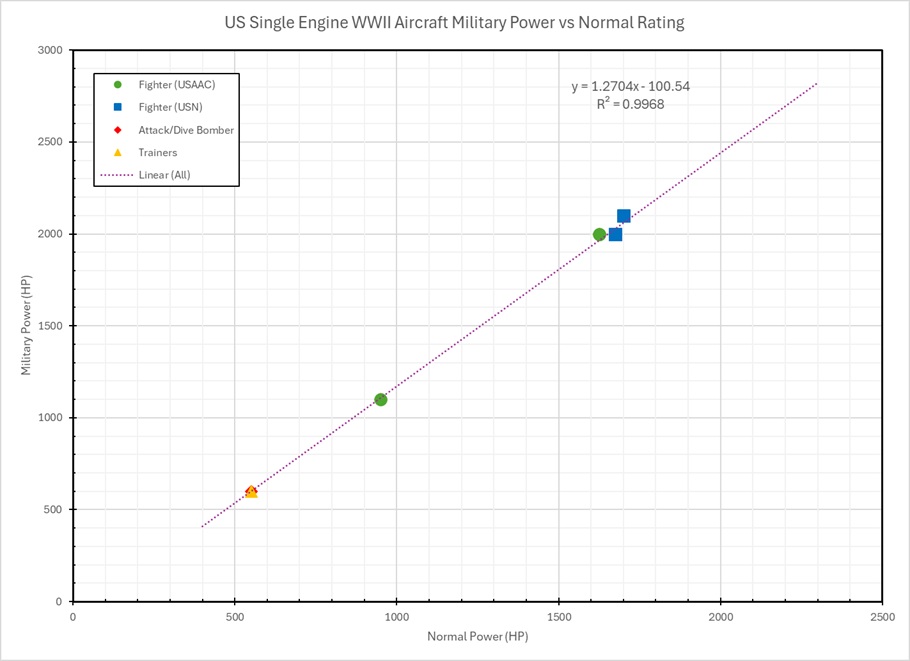

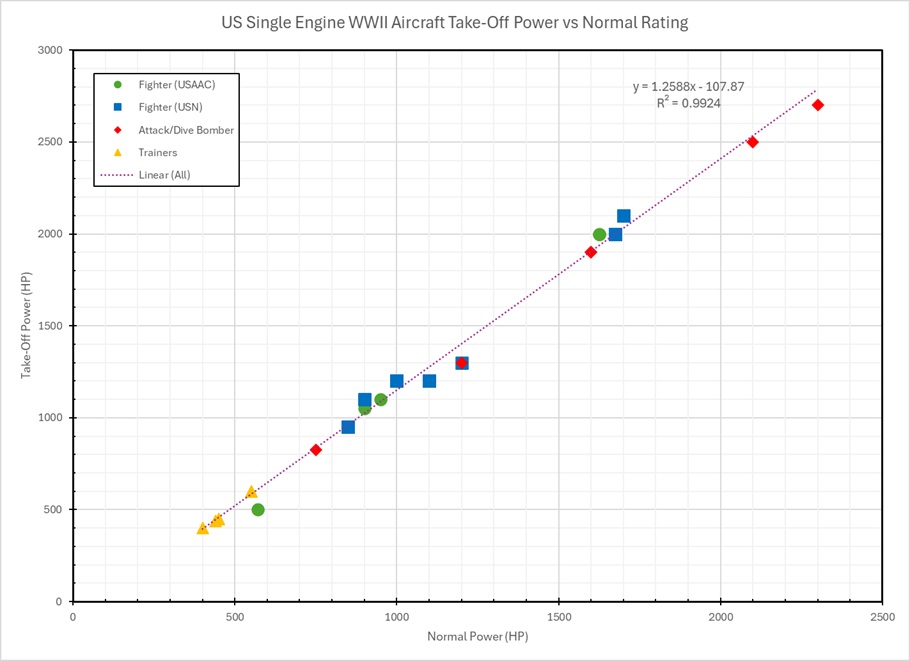

Plots of both Military and Take-Off engine ratings vs Normal rating were developed to identify any trendlines, as shown below.  No plot was developed for War Emergncy Rating vs Normal Rating at this time due to the limited amount of data currently available in the tables above.

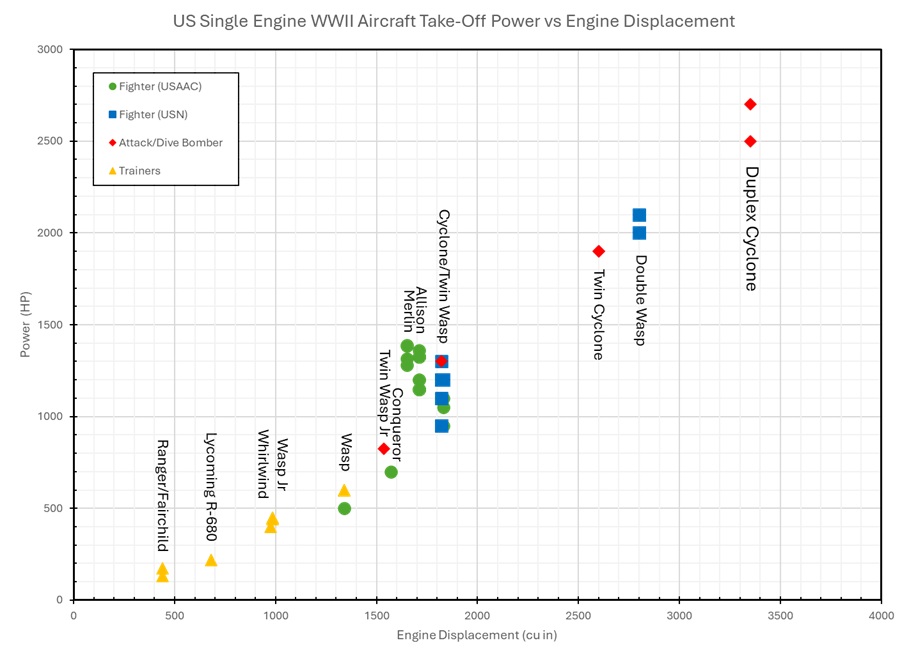

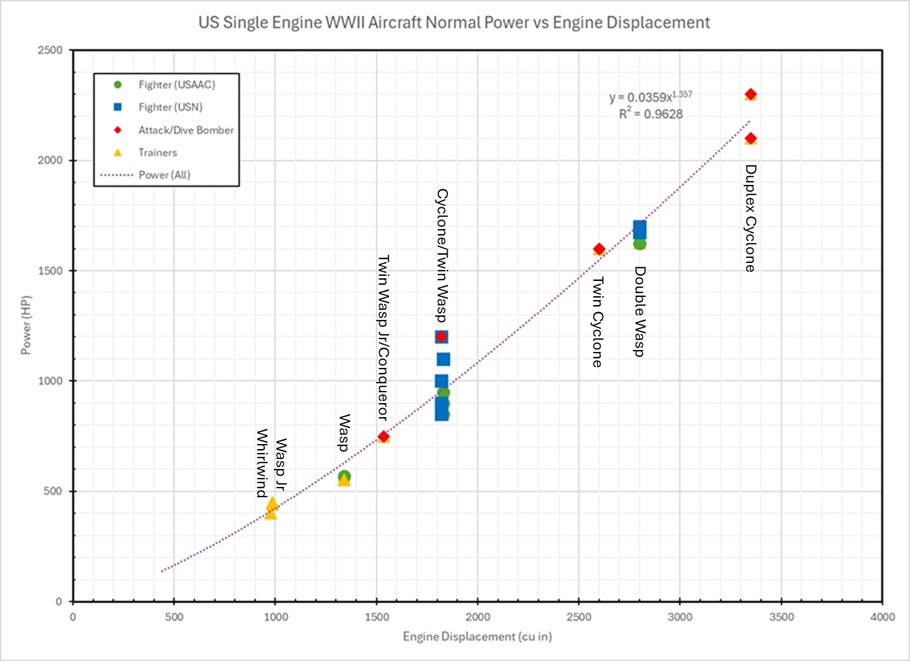

Here also are plots of the the Normal Power Rating and Take-Off Power Rating versus Engine Displacement for the engines installed on the planes analyzed here.





Caveats/Notes

1. Please note all units are in pounds and feet and that I am still in the process of filling in and confirming some of the informationfor these tables.
2. For Dimensions, L = Length, W/D = Width (for Inline and V-Engines) or Diameter (for Radial Engines), and H = Height (only used for Inline or V-Engines)
