Useful Loads Plots

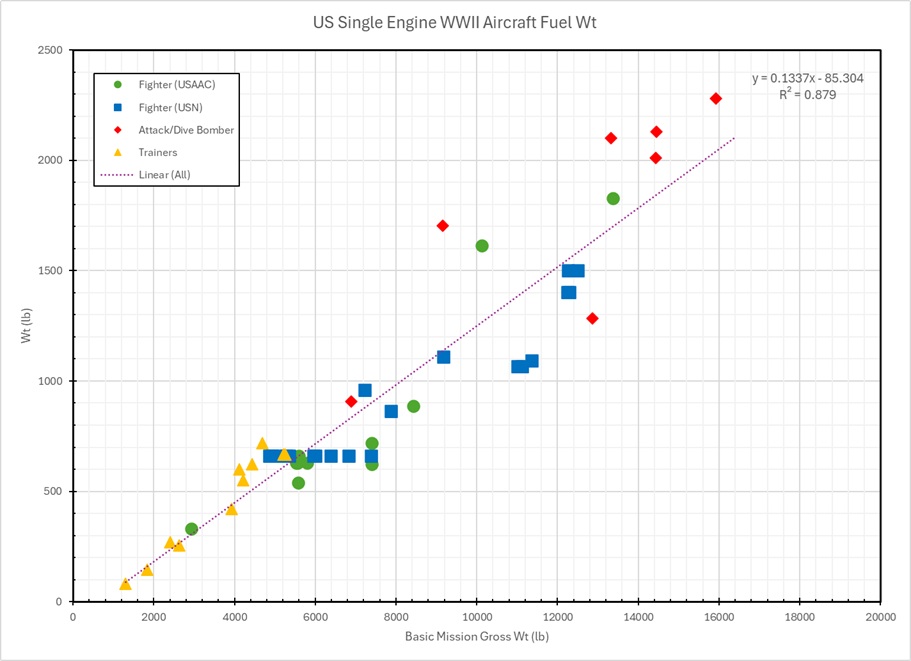

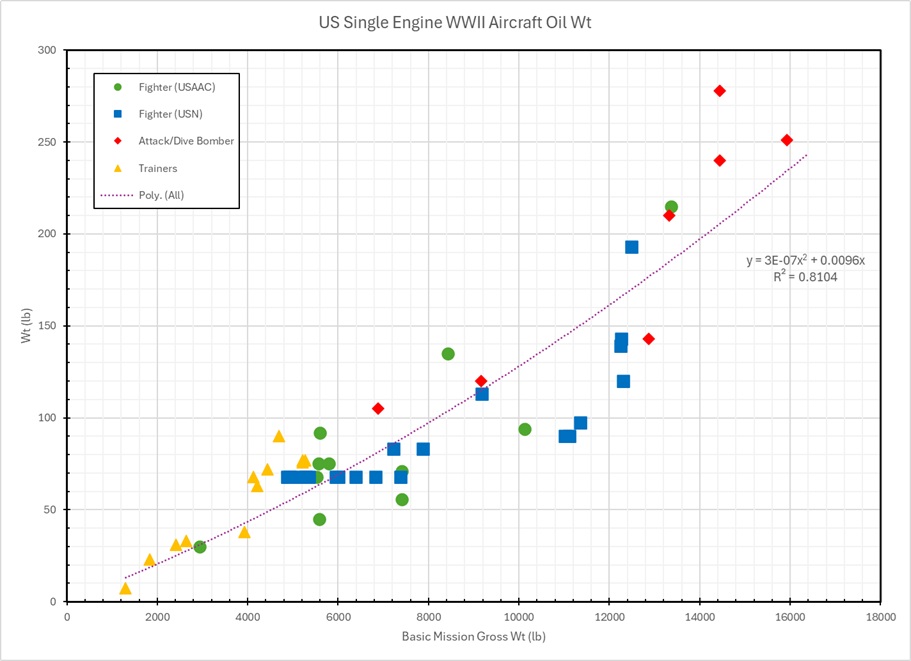

Plots of both Fuel Weight and Oil Weight vs Basic Mission Gross Weight are shown below.

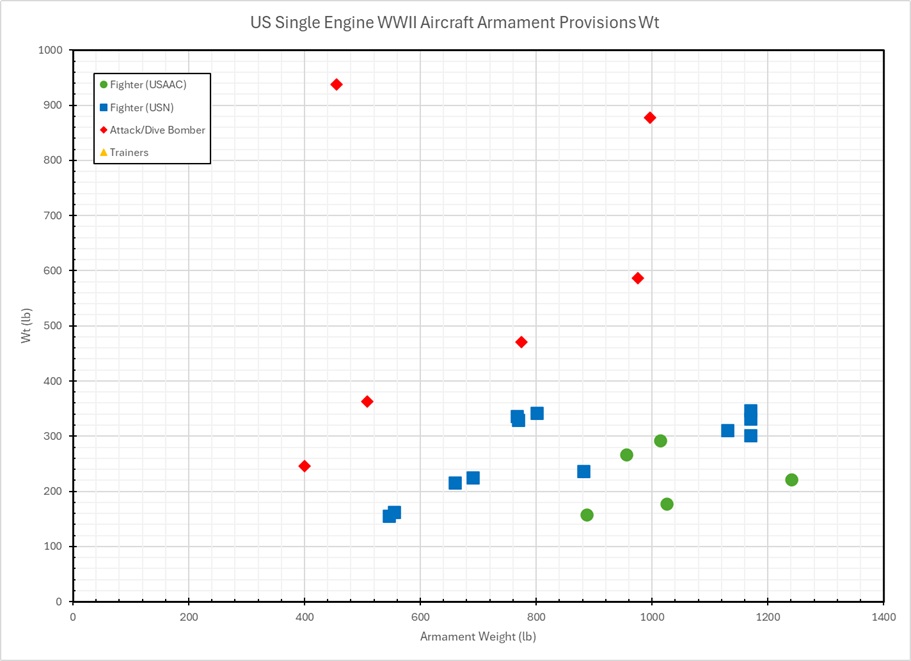

Next are plots of Armament Provisions.  An issue to keep in mind with regards to Armament Provision Weights are that for many of the aircraft analyzed here, armor and bullet proof glass was included into this group along with things link ammunition trays, firing controls and other such items.  As such, this weight group has been plotted against both Armament Weight and Basic Mission Gross Weight (respectively).





Caveats/Notes

1. Please note all units are in pounds and feet and that I am still in the process of filling in and confirming some of the informationfor these tables.
